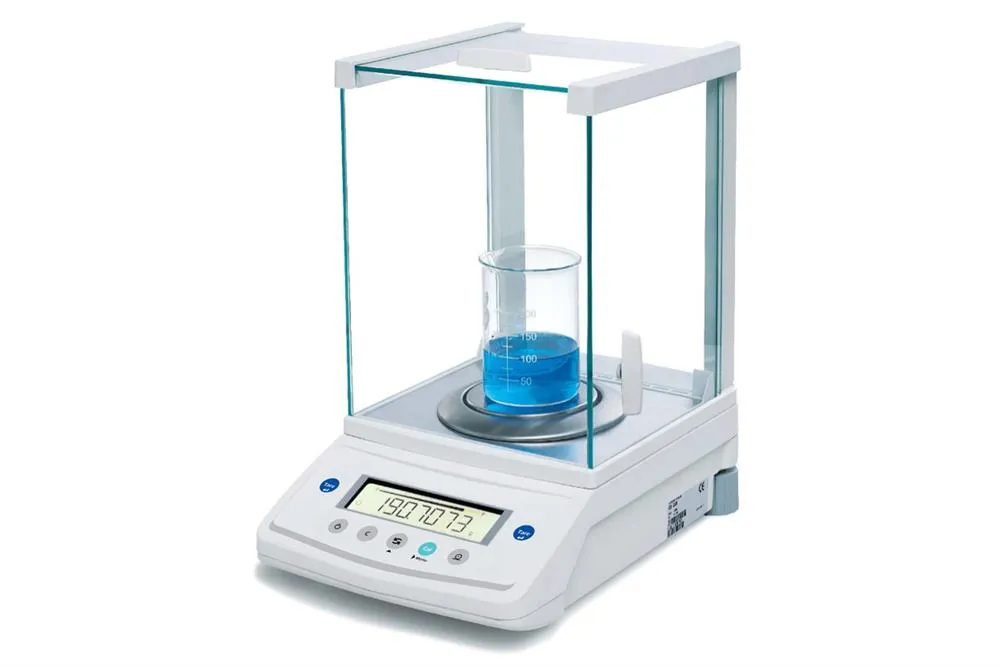

The Bal-CX220 analytical balance comes with various advanced features to enable highly precise weighing with 0.1mg (0.0001g) readability. It's fully automatic internal calibration self-calibrates when ambient temperature changes by a specific value or once the user-defined time interval has elapsed. The balance's statistical calculation function display and output statistical calculation data as No. (number of data), SUM (total), MAX (maximum), MIN (minimum), R [range (maximum-minimum)], AVE (average), SD (standard deviation) and CV (coefficient of variation).
SPECIFICATIONS
Features
|
- Analytical Balance Specs:
- Weighing Capacity: 220g
- Readability: 0.1mg (0.0001g)
- Tare Range: Full
- Repeatability (Std. Deviation): 0.1mg
- Linearity: 0.2mg
- Response Time: 3 sec
- Operating Temperature Range: 10º to 40ºC
- Sensitivity Drift: ± 2ppm (2 x 10 / ºC)
- Pan Size: 90mm Dia.
- Selectable Weight Units: Gram / Kilogram / Pound / Ounce / Troy Ounce/ Grain/ Pennweight / Carat / Milligram / Momme / Mesghal / Hong Kong Taels / Singapore Taels / Taiwan Taels / Baht
- Built-in clock for making all documents ISO/ GLP/ USP complaint.
- Conforms to GLP/GMP and ISO 9001 Standard.
- Metal Housing eliminates the effects of thunderstorms or electromagnetic interference from other equipment and provides long term stability and accurate results.
- Large glass windshield provides the user with more space for easily placing samples on the pan & allowing them to get accustomed to the interior temperature. It's nearly frameless all-glass design maximizes visibility by providing optimal lighting conditions. Glass panels can be slid from three sides for placing and removing samples (please see photos below).
- Adjustable leveling feet and built-in spirit level enable maximum accuracy and stability.
Glass Panels Opened Glass Panels Closed
|
| Display |
- Large bright LCD display with high contrast LED backlight makes it easy to read under any room lighting conditions.
- High precision 0.1mg (0.0001g) readability makes the balance ideal for measuring samples at high accuracy and precision.
|
Data Transfer
|
- Bidirectional RS 232C and secondary screen output Interface make communication with PC or Printer easy.
|
Built-In Application Modes
|
- Piece Counting: Count the pieces you add to or remove from the weighing container.
- Percent (%) Weighing: Weigh into a preset value or determines percentage weight deviations.
- Check Weighing: Check whether a sample corresponds to a preset target or is within a specific tolerance range.
- Formulation: Allow individual weighing values to be summed to a total.
- Statistics: Obtain the statistics of the weighing data.
- Totalization: Weigh, and then individually weigh in a piece which can be summed to a total.
- Density Determination: Determine the density of solids (purity of gold can also be determined on the basis of density).
- Animal Weighing: Perform the weighing of unstable samples (live animals). The balance calculates the weight as the average of a defined number of individual weighing operations.
|
| Internal Calibration |
Perfect Self Auto Calibration (Temperature / Time / Power On) |
| Scale Dimension |
340 x 212 x 340 mm
|
| Weight |
20 lb |
| Power Supply |
Universal AC Adaptor 220V or 110V; /- 20%; 50-60Hz |
| Compliance |
ISO, GLP / GMP USP Compliance |
| Warranty |
One year limited warranty with lifetime support |
