Overview

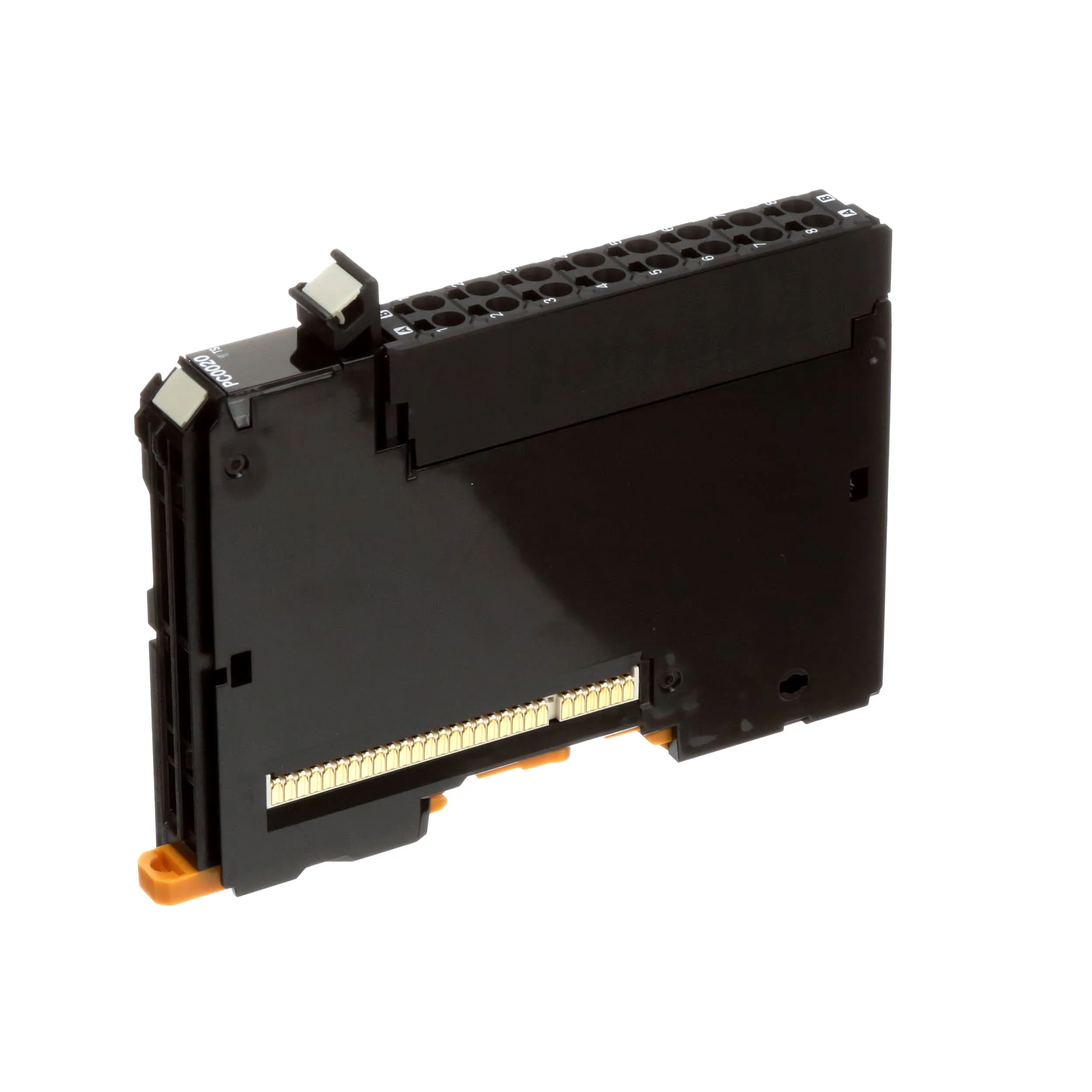

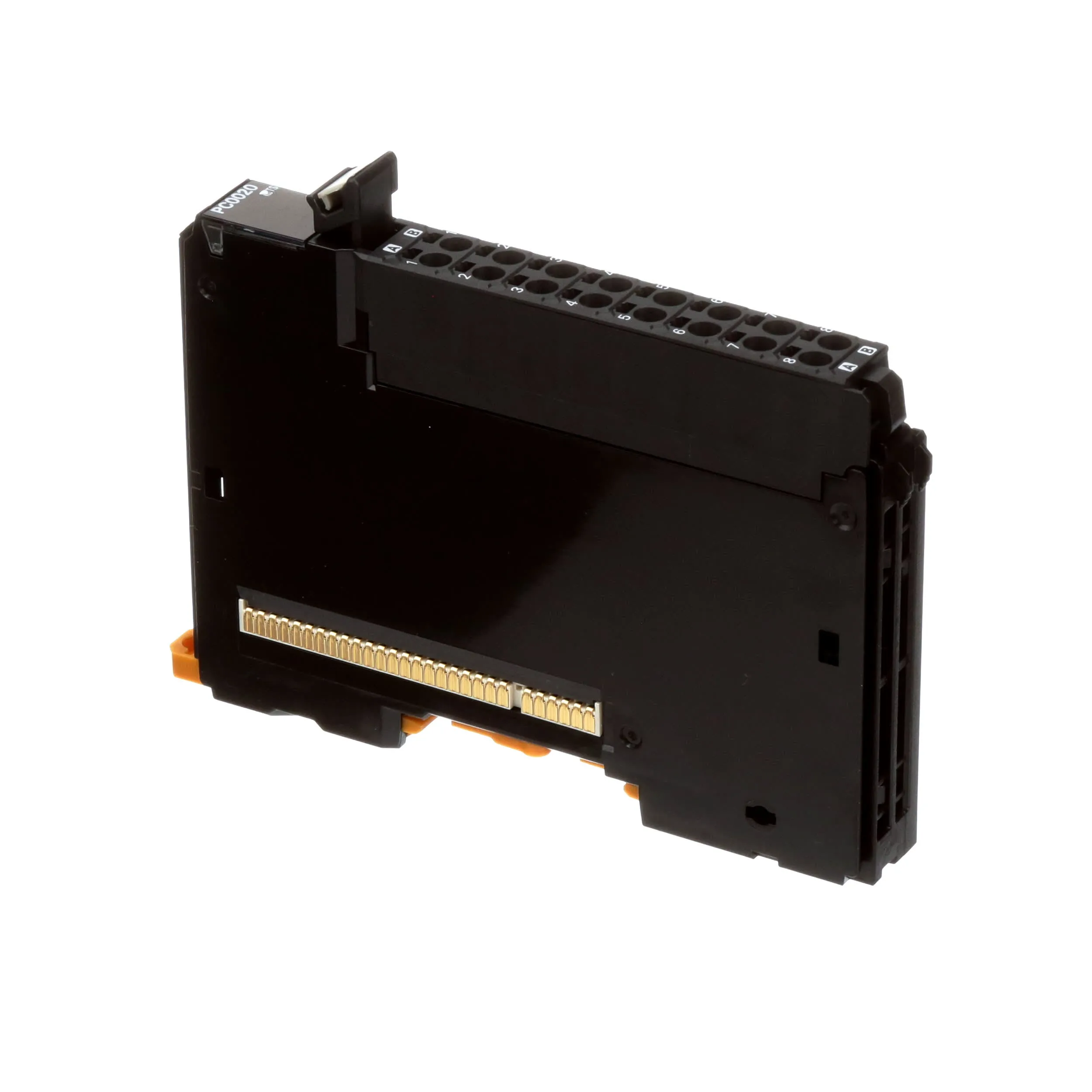

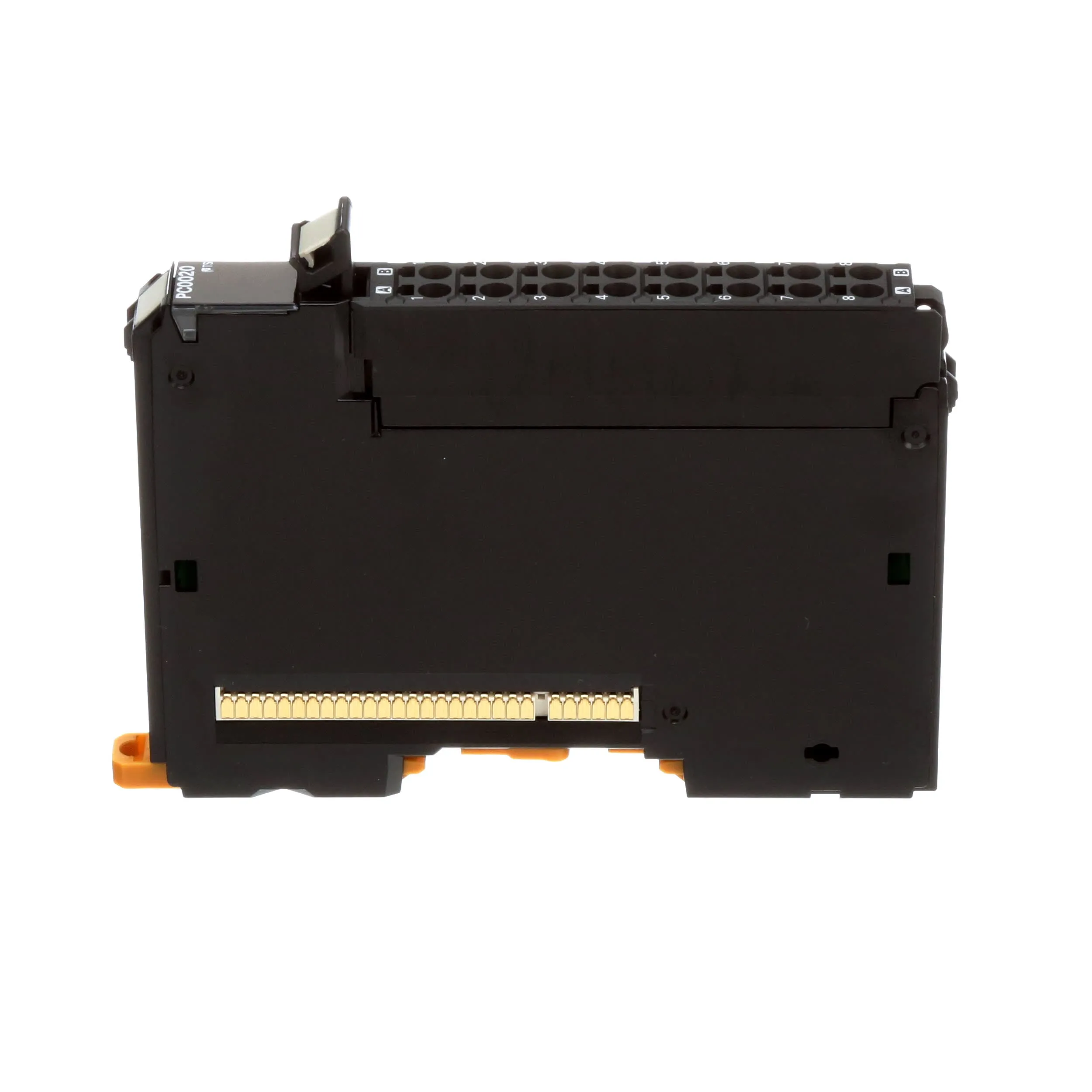

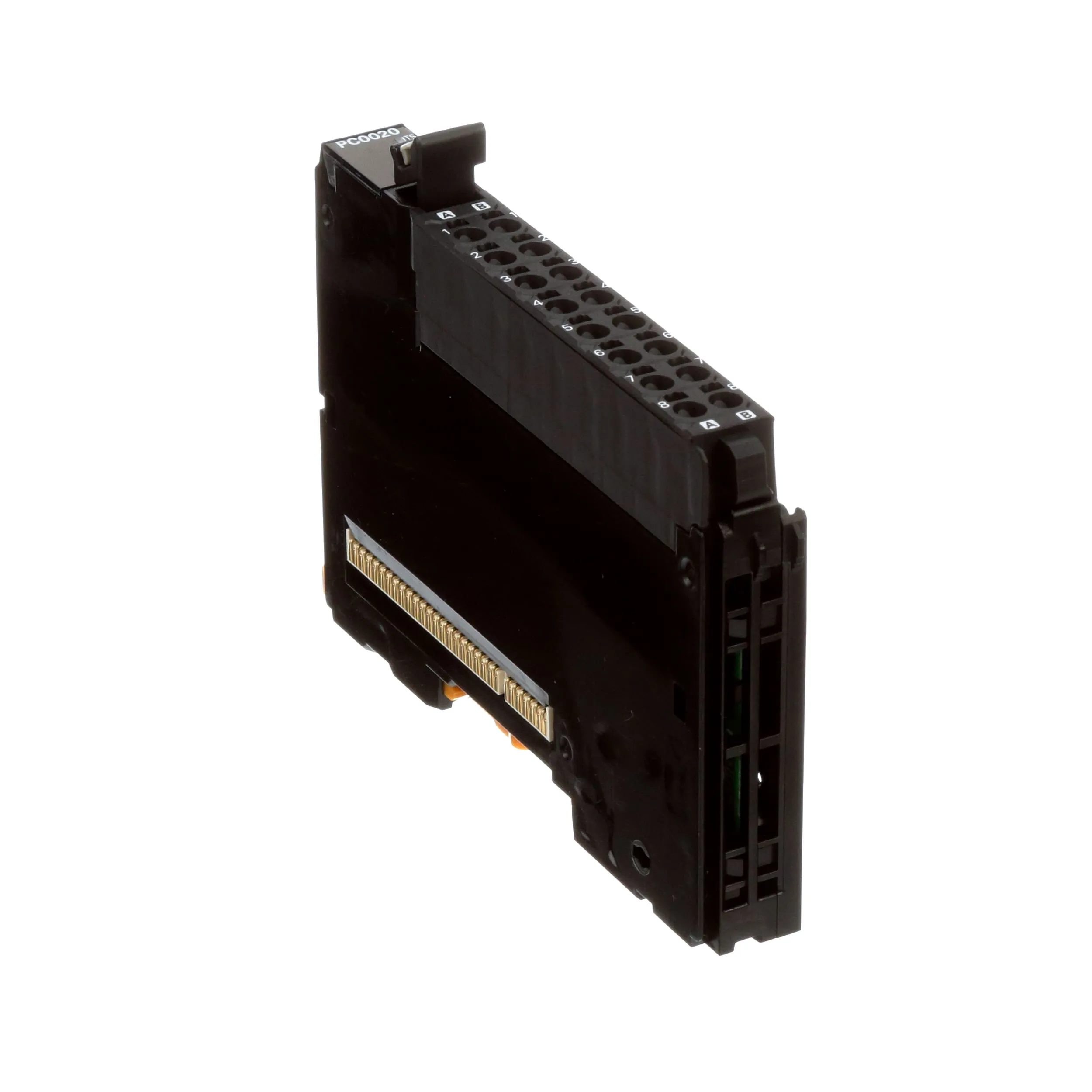

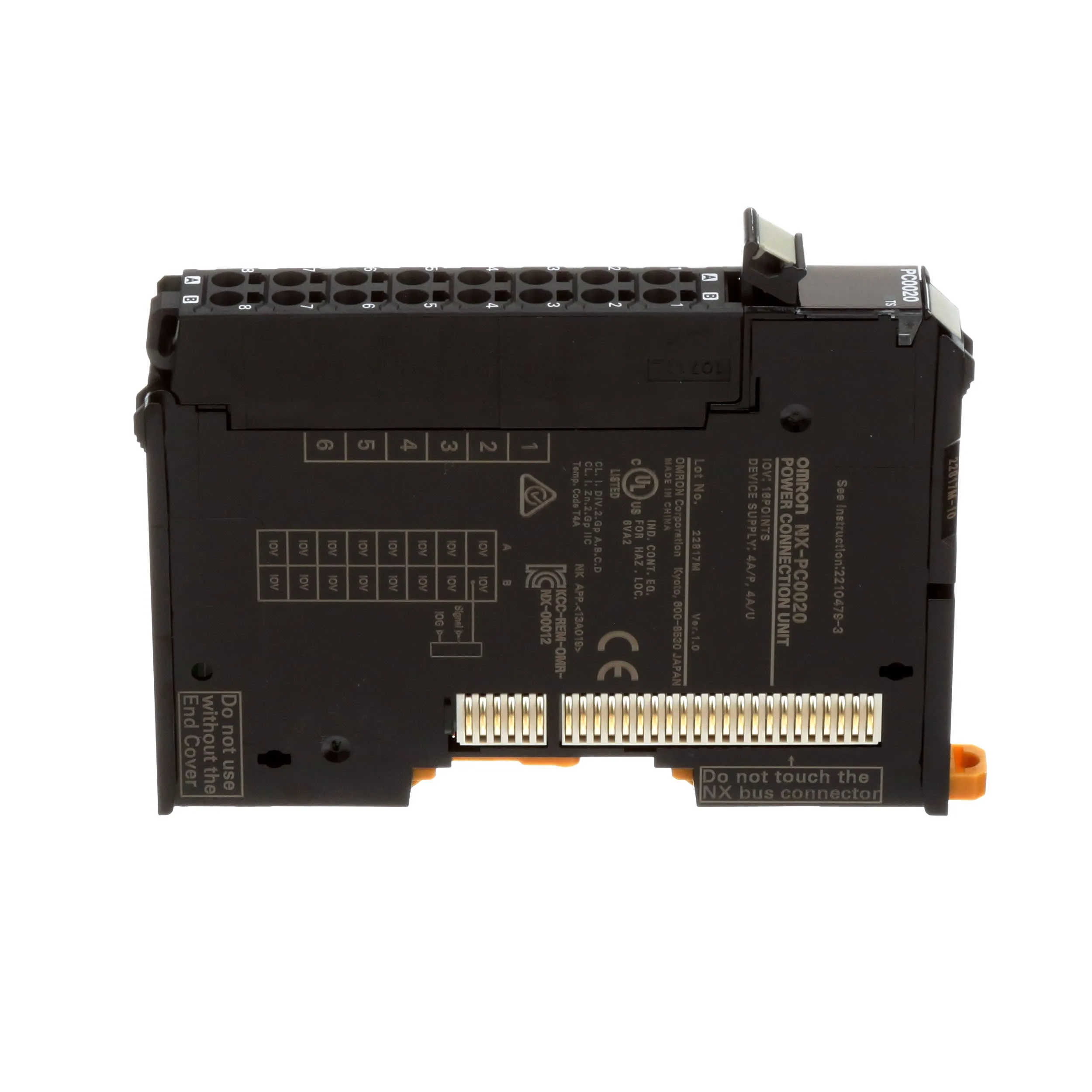

Omron NX Family of Series | NX-PC — NX Series System I/O Power Supply Unit:
Power Supply Unit, Power Connection Unit, and FG Terminal Expansion Unit for NX-Series.
Features:
Units to feed in additional Unit power and I/O power to an NX-series remote I/O terminal
Screwless clamp terminal block significantly reduces wiring work
Space-saving 12 mm wide units
The NX Unit Power Supply Unit allows expansion of the I/O configuration beyond the maximum power supply capacity of the EtherCAT Coupler
The I/O Power Supply Unit is used when the total allowed I/O current per feed terminal is exceeded, or to split I/O power into groups
The I/O Power Connection Unit can be used as an additional power supply terminal for connected sensors and actuators
The FG Terminal Expansion Unit can be used as ground terminal for wire shields
The screwless terminal block is detachable for easy commissioning and maintenance
