Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| For Use With | Level Measurement |
| Function | Non-contact Level Measurement |
| Measurement Range | 4.1 ft |
| Mounting Type | NPT 1 in |
| Output | 4-20 mA |
| Sensing Mode | Ultrasonic |
| Series | |
| Special Features | Automatic Temperature Compensation |
| Supply Voltage | 24 VDC |
| Termination | Cable |
| Type | Level Transmitter |
Overview

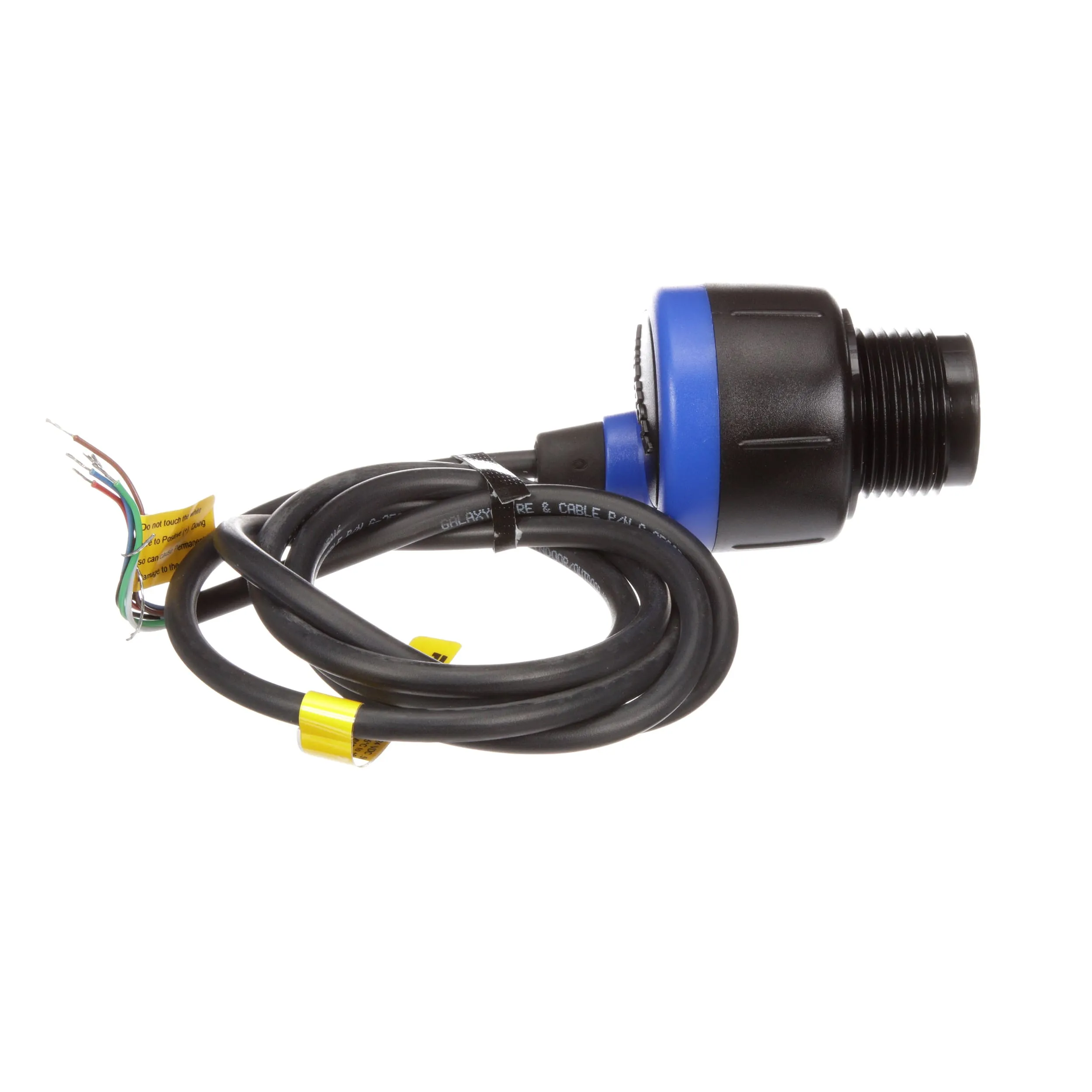

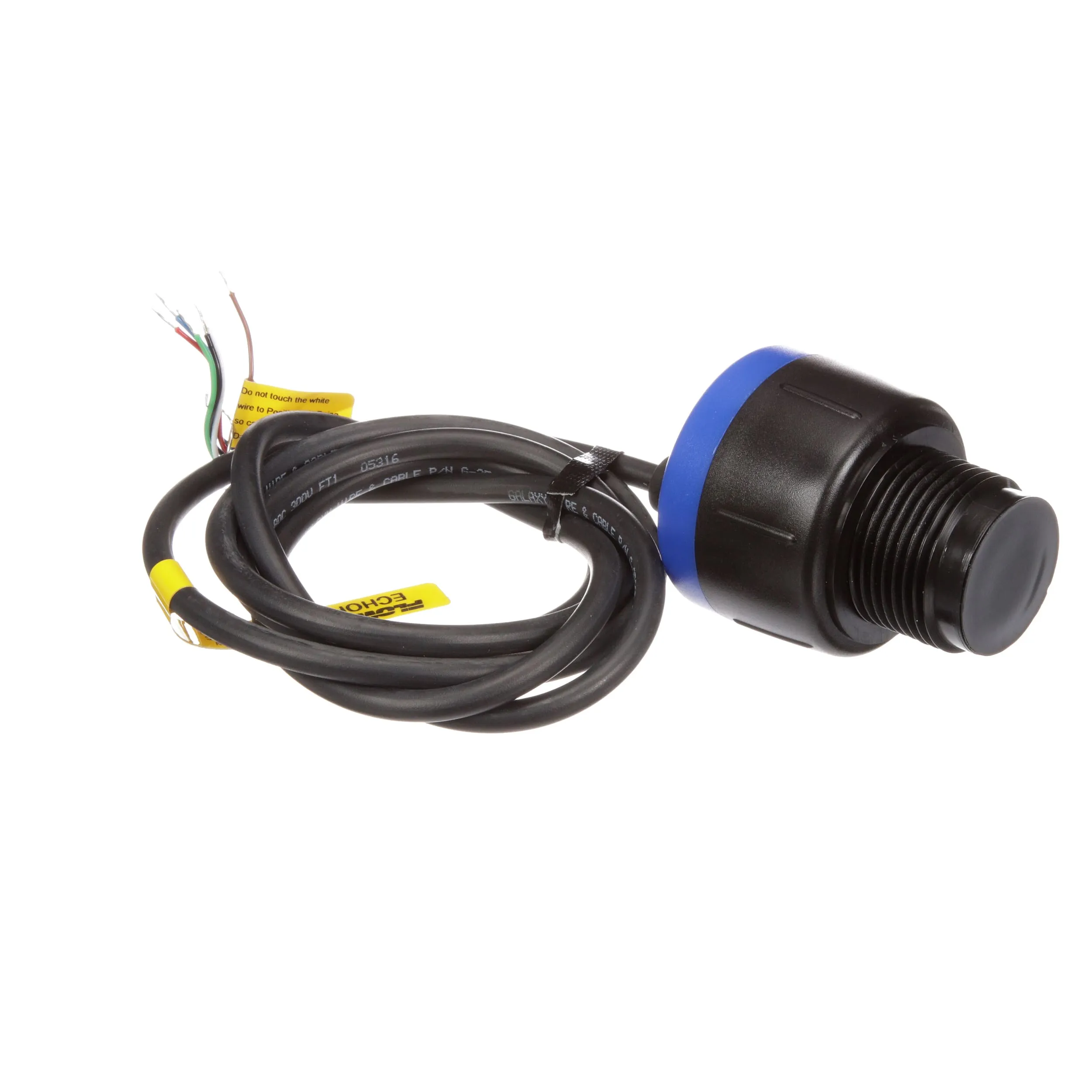

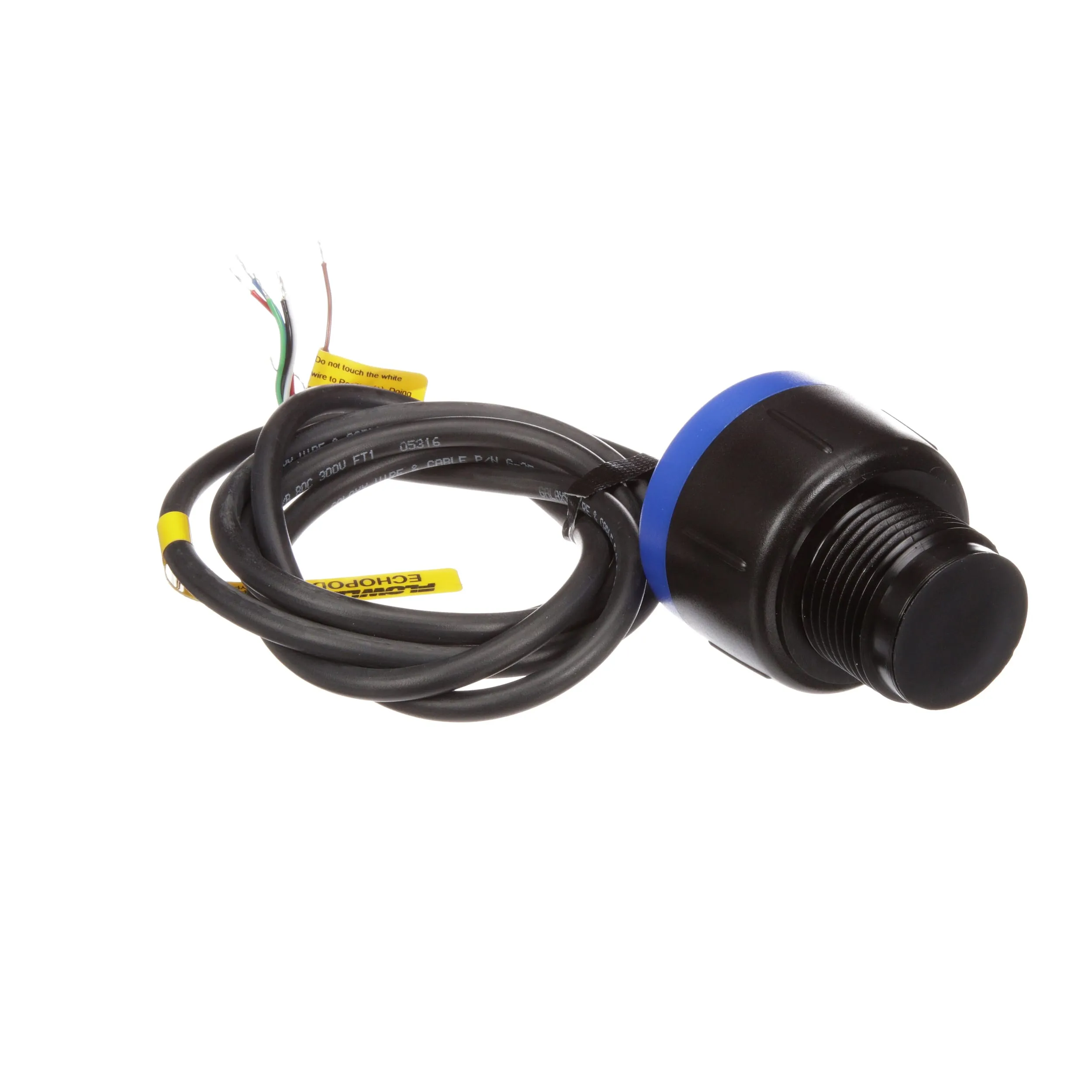

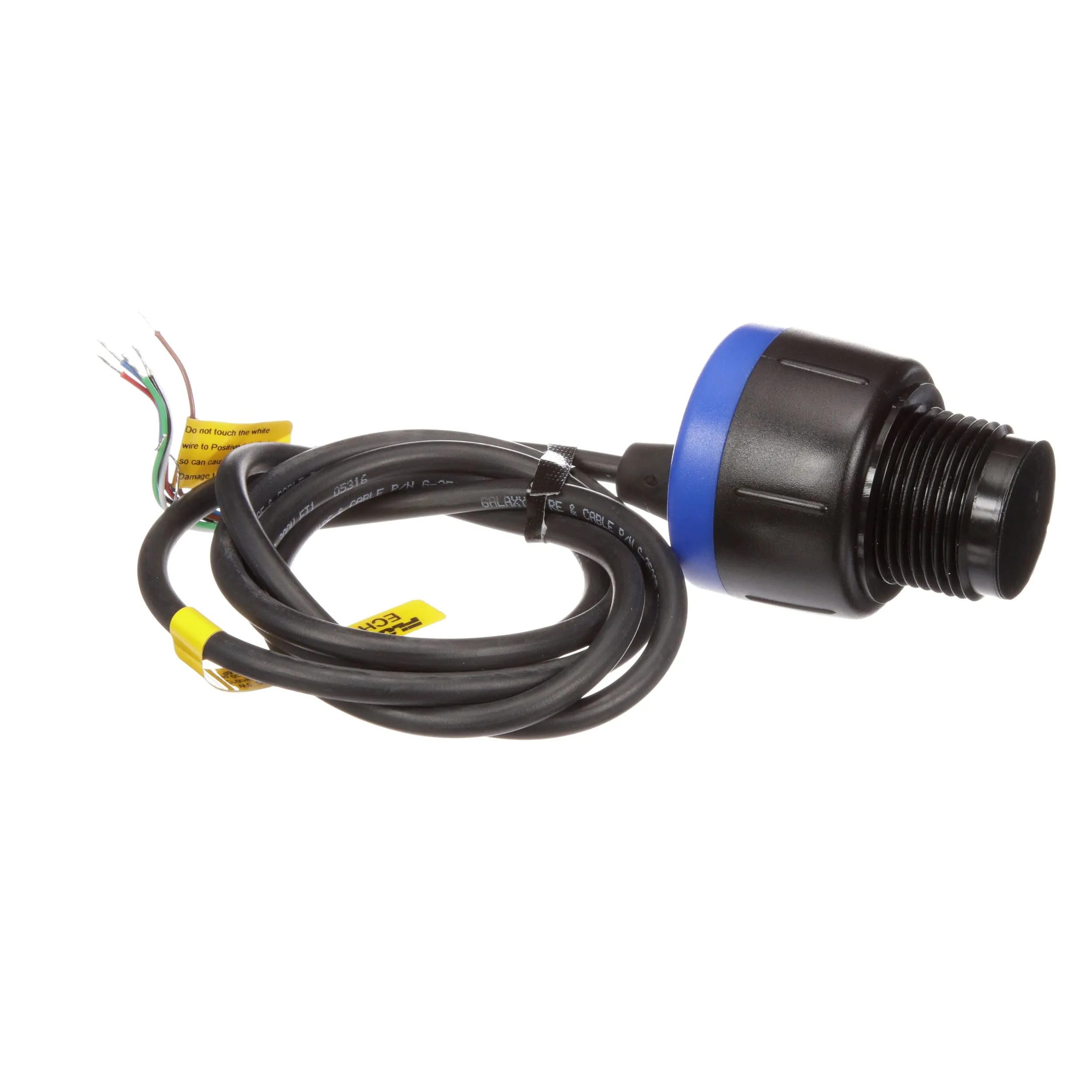

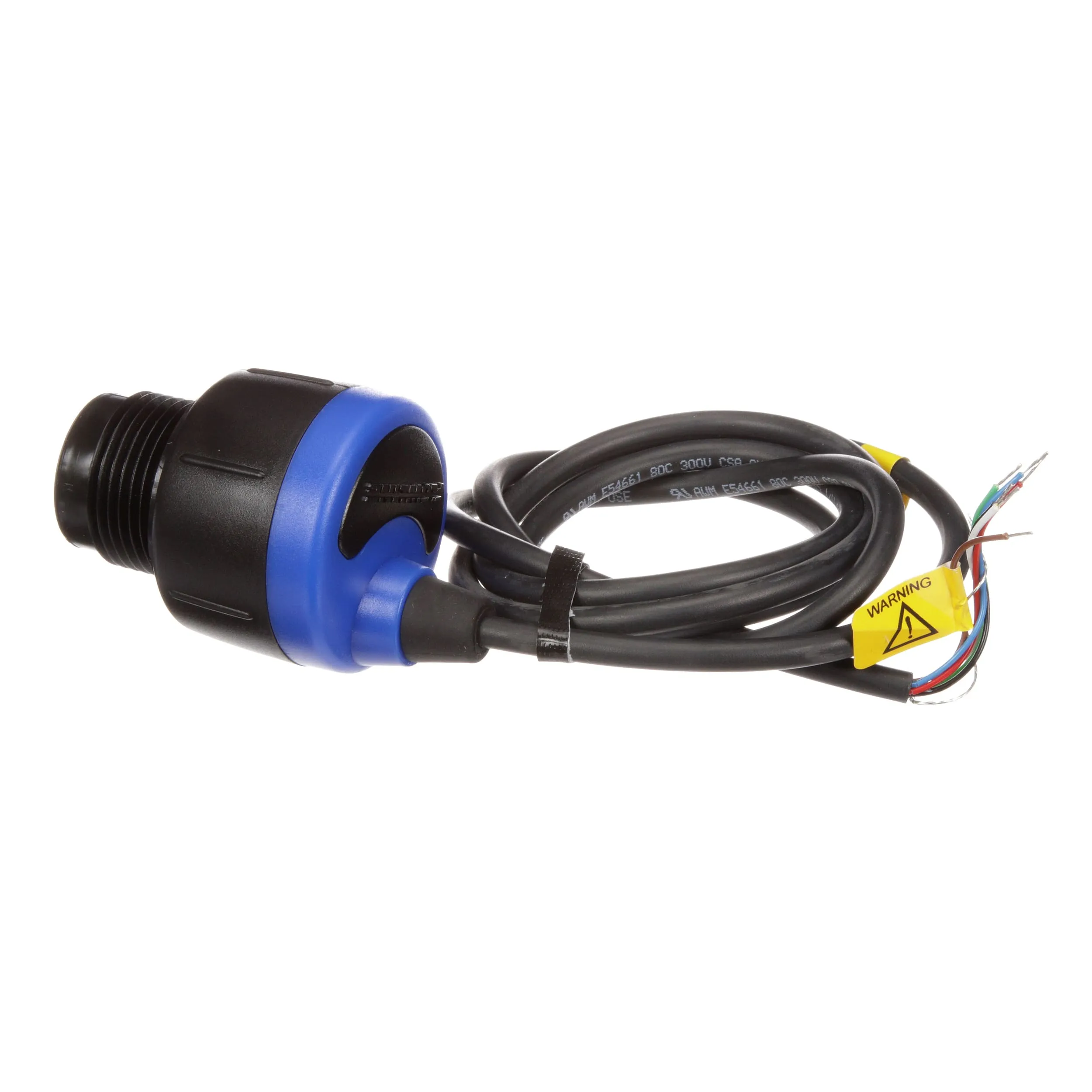

EchoPod® DL10 Ultrasonic Liquid Level Transmitter:
The general purpose ultrasonic level transmitter provides continuous level measurement up to 49.2” (1.25m) with a 4-20 mA signal output, and is configured via our free WebCal software. This non-contact liquid level sensor is ideally suited for corrosive, sticky or waste liquids, and is selected for chemical feed, IBC or drum, skid or machine and cooling tower applications.
Features:
