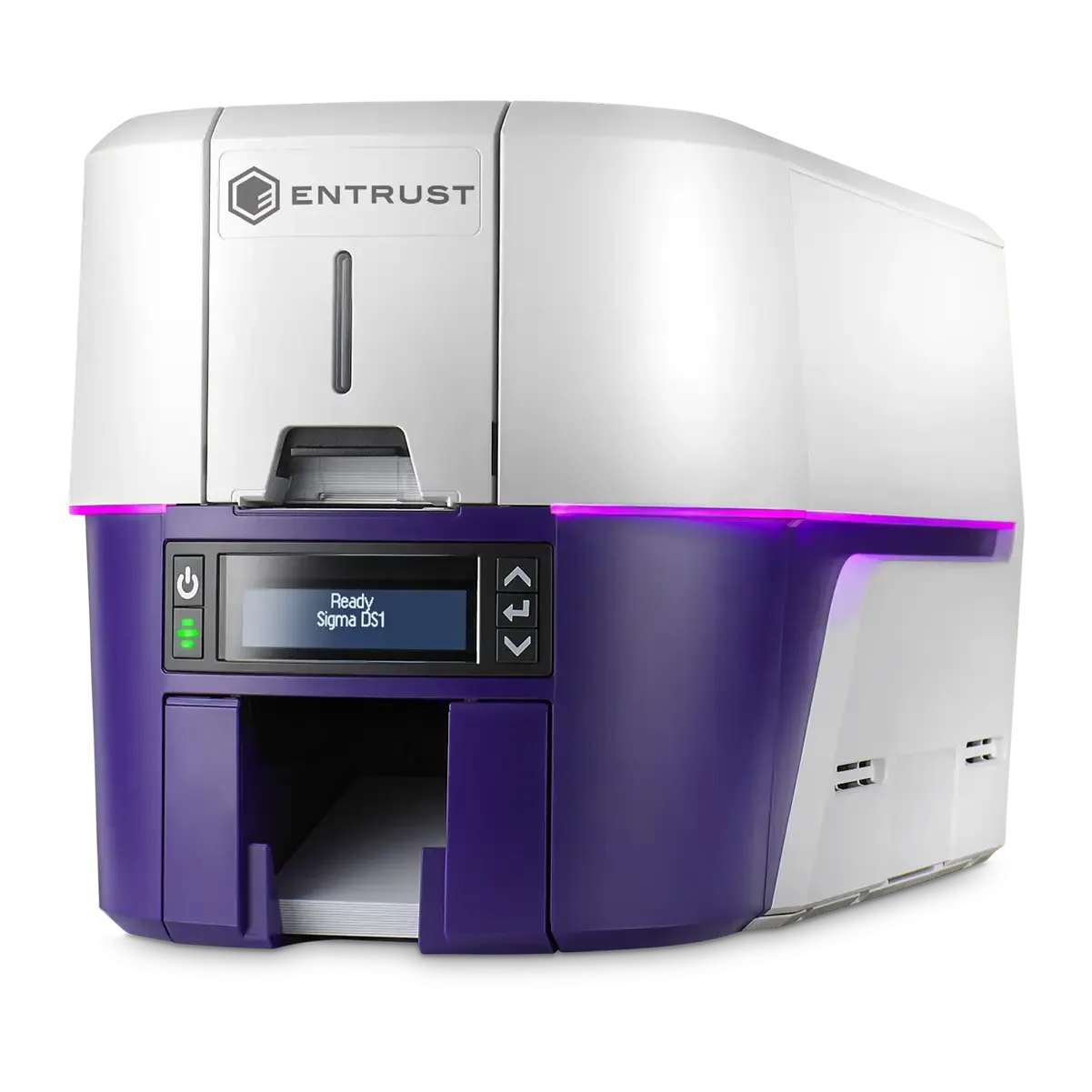

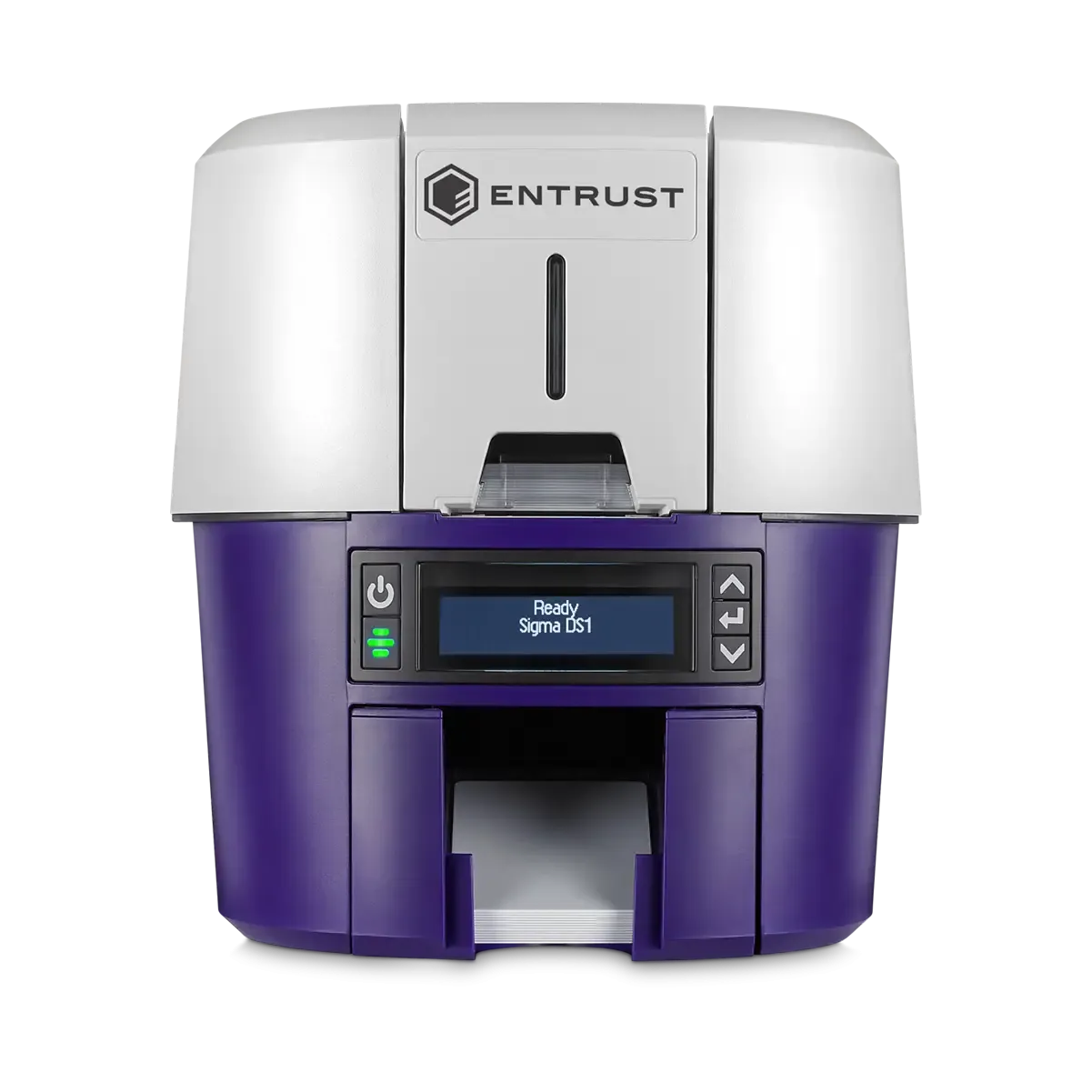

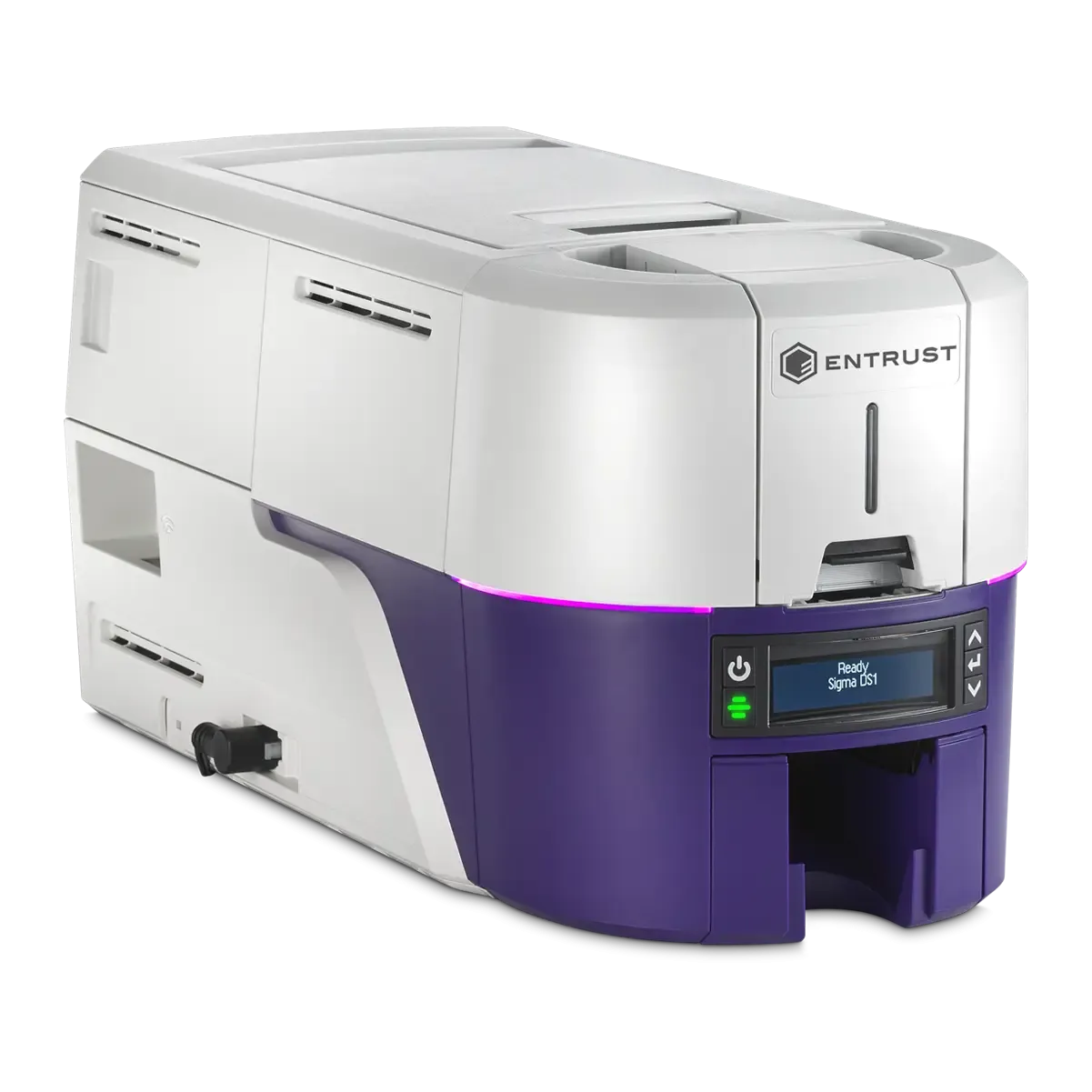

The Entrust Sigma DS1 is the next generation of direct-to-card printing, designed for today's cloud environments. It offers a seamless and secure ID card issuance experience, ensuring your organization's needs are met with ease and efficiency.

Features and Benefits

• Simple: The most user-friendly ID card issuance solution from unboxing to issuing ID cards and mobile flashpasses.
• Secure: Industry-leading security architecture protects your cards and data throughout the issuance process.
• Smart: Scalable and forward-thinking technology to expand your ID card program as your needs evolve.

Key Highlights

• Intuitive printer dashboard for mobile management
• Seamless self-service with QR code access to how-to videos
• Variable LED light ring for customization and status alerts
• Optional pre-loaded ribbon cassettes for easy ribbon changes
• Patented printhead protector to extend printhead life

Advanced Security Features

• Secure boot to protect from malware or virus at boot-up
• Trusted Platform Module (TPM) for managing TLS/SSL certificates and keys
• Encrypted data transmission between software and printer
• Customer data is not stored in the printer after printing
• Specialty luster printing for added card security

Flexibility and Scalability

• Supports both physical cards and digital mobile flashpasses
• Choose between on-premises or cloud-hosted deployment
• Mobile printing capabilities (iOS, Android, Windows)
• Expandable with smart card capabilities, WiFi connectivity, and more

Technical Specifications

• Print technology: Dye-sublimation/resin thermal transfer
• Print resolution: 300 dpi (300 x 600, 300 x 1200)
• Print speed: Up to 175 cards per hour (color), up to 660 cards per hour (monochrome)
• Card capacity: Input hopper – 125 cards, Output hopper – 25 cards
• Card sizes: 0.010 to 0.040 inches thickness, ID-1, CR-79, CR-80 dimensions
• Connectivity: USB
• Operating environment: 60°F to 95°F (15°C to 35°C), 20-80% RH (non-condensing)
• Physical dimensions: L 17.4 in x W 8.9 in x H 9 in
• Weight: 11.3 lbs (5.49 kg)
• Warranty: 36 months

Optional Features

• Magnetic stripe encoding
• WiFi connectivity
• Multi-hopper and smart card capabilities

Specialty Ribbons

Enhance your card designs with the Entrust Luster Color Panel Ribbon, which allows for translucent color-shifting designs. This ribbon includes full-color dye panels, a luster panel for iridescent printing, and a topcoat for card protection. Ideal for economic two-factor authentication, it adds both visual and UV fluorescent security features to your ID cards.

Why Choose the Entrust Sigma DS1?

The Entrust Sigma DS1 provides a combination of security, simplicity, and scalability, making it the perfect solution for organizations looking to issue secure, high-quality ID cards quickly and efficiently. Trust in Entrust's proven technology to protect your data and streamline your ID card issuance process.
