The Collision Devices TARS ("This Audio Reached Singularity") is a Fuzz & Filter pedal inspired by the Black Hole Symmetry's Fuzz and the MS-20 filter.
Cut through the mix with the different filter possibilities or sweep between the frequencies to create huge waves of noise.

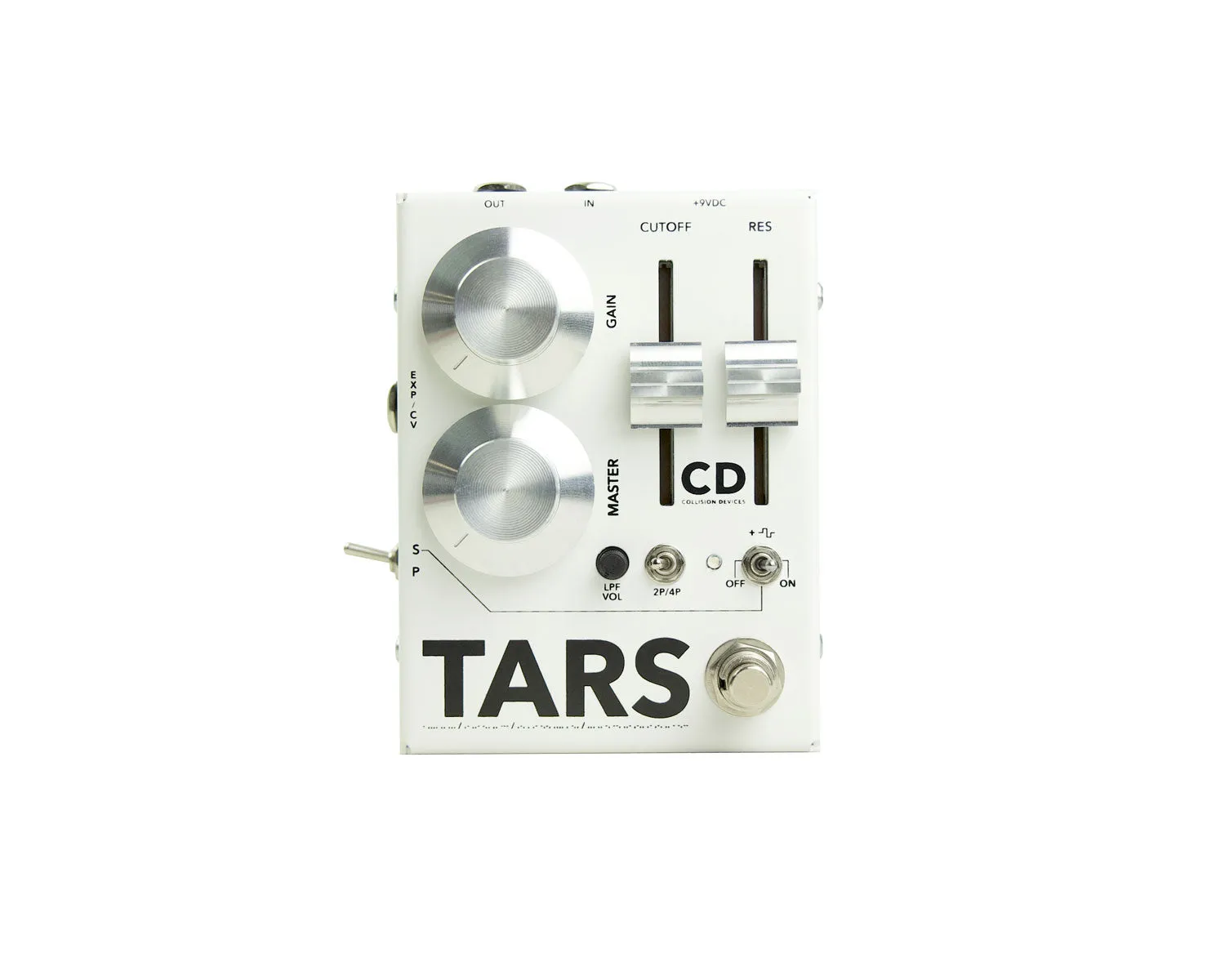

Features:

• Gain : Placed after the Jfet transistor input stage and followed by silicon gain and clipping stages.
• Master : Master volume control.
• CutOff : This fader controls the cutoff frequency of the MS-20 style low pass filter. Based on a LM13700 stage and goes from 15Hz to 44kHz.
• Resonance : Increases the intensity of the signal around the cutoff frequency.
• LPF VOL : VCA - sets the output volume of the filter. Pretty useful to adjust the filter to your setup.
• 2p/4p toggle switch : Select the attenuation curve. Cut at -12dB/octave (2p) or at -24dB/octave (4p).
• Add Fuzz (On/Off) toggle switch : Add an extra unfiltered fuzz signal. The result is louder and creates cool frequencies boost or cut depending on the cutoff position.
• S / P toggle switch : Put the fuzz through the filter in serial - or use both effects in //.
• Expression/CV : The Expression/CV control is linked to the cutoff fader. The cutoff fader value sets the lowest value the EXP pedal can go.

Video:

Product Specs

• Item Number: 27430
• Make:
• Model:
• Condition:
• Finish: White
• Categories: ⇒ ⇒
• Made In: France
• MPN: CD-TARS
• EAN: 3770029812027
