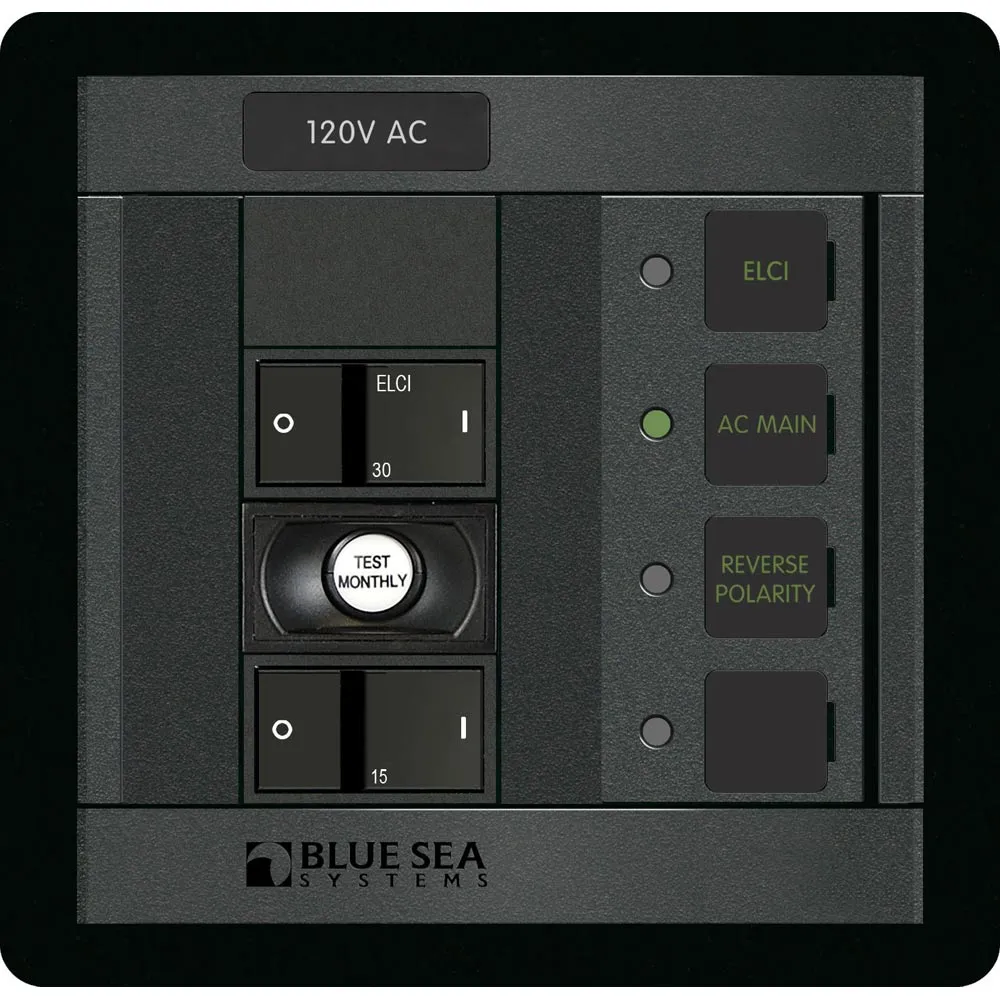

ELCI Main 30A Double Pole 1 Position

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA




• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection




• One 15A AC Branch Flat Rocker Circuit Breaker




• Red " Reverse Polarity" LED




• Includes 4206 AC Panel Basic Square Format Label Set




• All circuit label positions are backlit




• "ON" indicating LEDs

Specifications:

•
  Positions: 1




•
  Nominal Voltage: 120V AC




•
  Backlit Label*: Green LED




•
  Height: 4.75" (120.65mm)




•
  Width: 4.88" (123.95mm)




•
  Depth: 3.99" (101.35mm)




•
  Weight: 1.00lb (0.45kg)

Includes:
(1) - 7403 - A-Series Flat Rocker Circuit Breaker - Single Pole 15A
(1) - 3102100 - A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A

*Green LEDs (Circuit Breaker Panels only) aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position
