LED Driver Cross Reference:
Universal D700C20UNVPW-L
Keystone KTLD-20-UV-SC730-56-VDIM-AF4 /USB
Keystone KTLD-30-UV-SC1050-56-VDIM-U7 /USB
Fulham T2C1UNV150P-40L
Fulham T1M1UNV210P-60L
Magnitude CFLEX-54W-1400-C-SL

The AFLEX platform offers the unparalleled ability to program the driver’s power in addition to the output current, dimming curve, dim-to-off functionality, NTC settings and more all while maintaining high efficiency over the programmable range. This unique technological advancement enables both ultimate design flexibility and significant SKU elimination. Programming the driver does not require any power and can be done in less than one second. The available auxiliary output provides a power source for sensors and/or cooling devices, eliminating the need for an additional power supply. The AFLEX driver is 0-10V dimmable down to 0.1% with any 0-10V dimmer. Unequaled flexibility and performance along with Class P approval and Title 24 compliance makes the AFLEX driver the perfect choice for any commercial lighting fixture application.

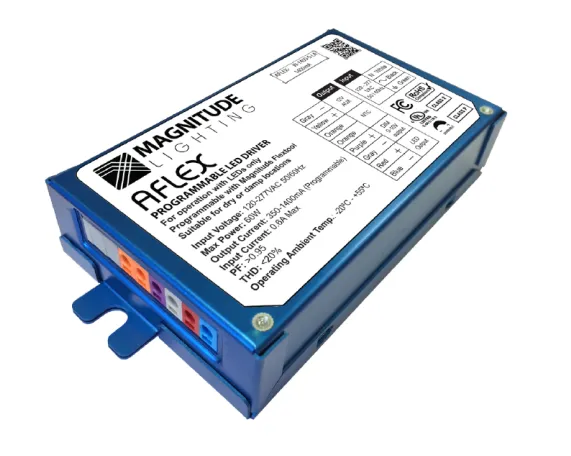

The AFLEX-60W-1400-S-L is a programmable constant current driver providing efficient, reliable output from a universal 120-277 input voltage. Constructed with an aluminum housing and blue anodizing for durability, its 100mA-1400mA output current range and 3-57VDC output voltage make it Title 24 compliant and suitable for dry locations. It also has terminal blocks with side feed and dual feed options, and a 5-year warranty.

Specifications

Documents
